findOrdersByTrackingNumber

Introduction

The findOrdersByTrackingNumber function allows you to locate orders associated with a provided tracking number. When executed in the Execute JavaScript block, it checks for the existence of orders in the system and, if found, returns a response array containing full details of the orders associated with the tracking number — including customer information, tracking details, purchased items, and payment status.

How to Use

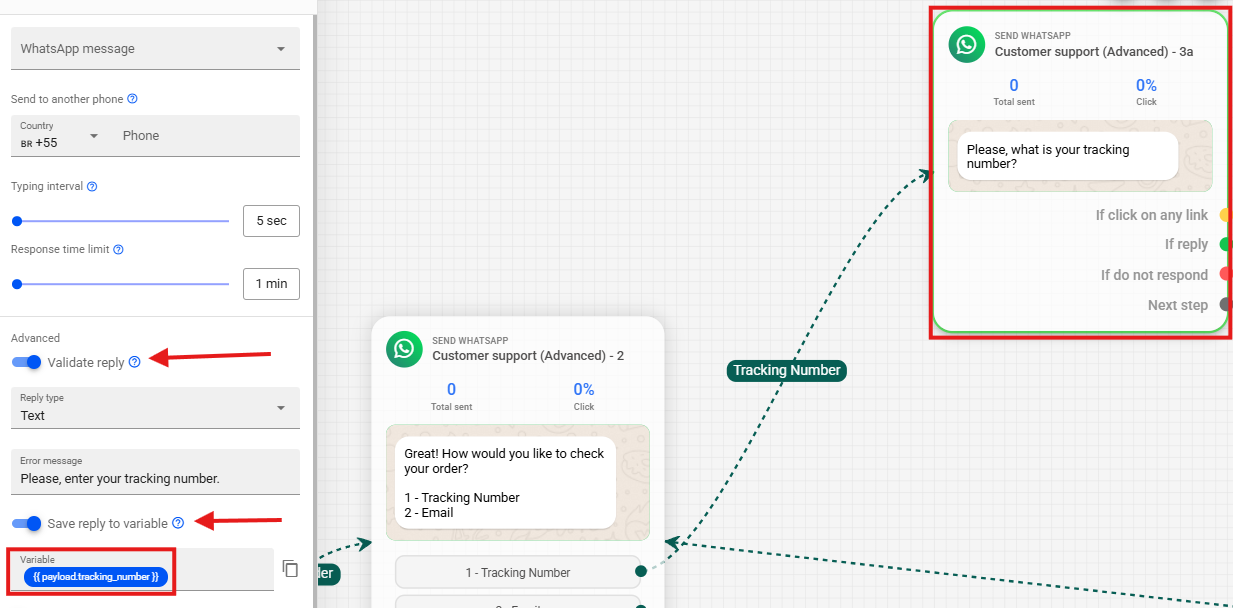

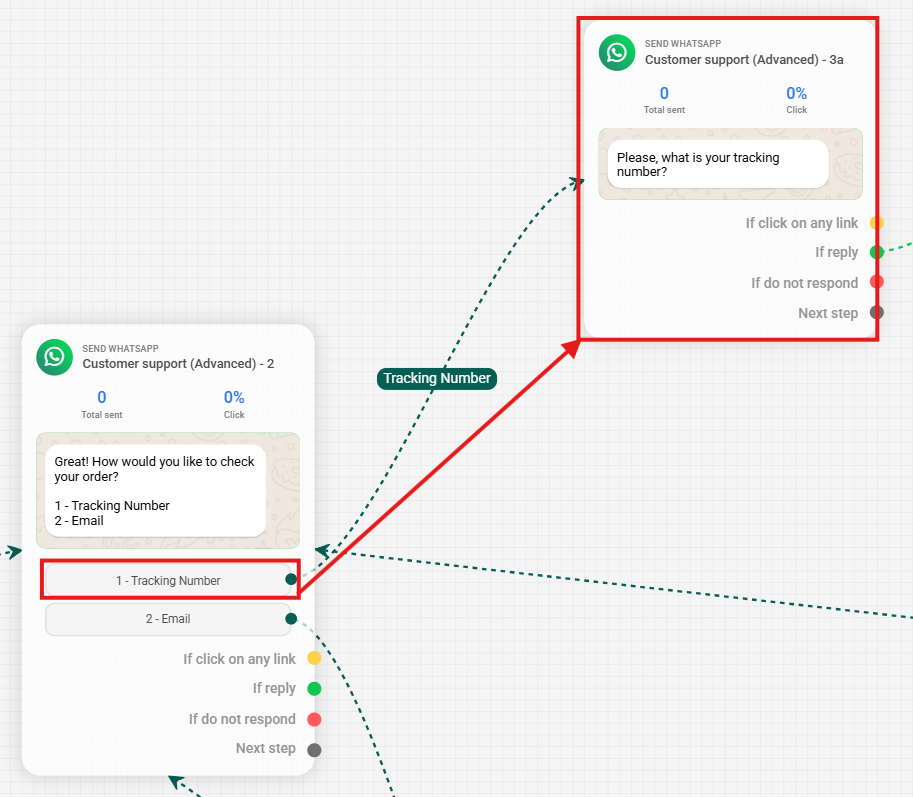

First, you need to use the advanced configuration options in our WhatsApp messages to request the tracking number from the customer, saving the provided response into a variable — in this case, payload.tracking.

Note: To learn more about the advanced configuration options in our WhatsApp messages, access our help center article: Help Center – Understanding the Logic, Time, Chat, and Advanced Actions in Automations

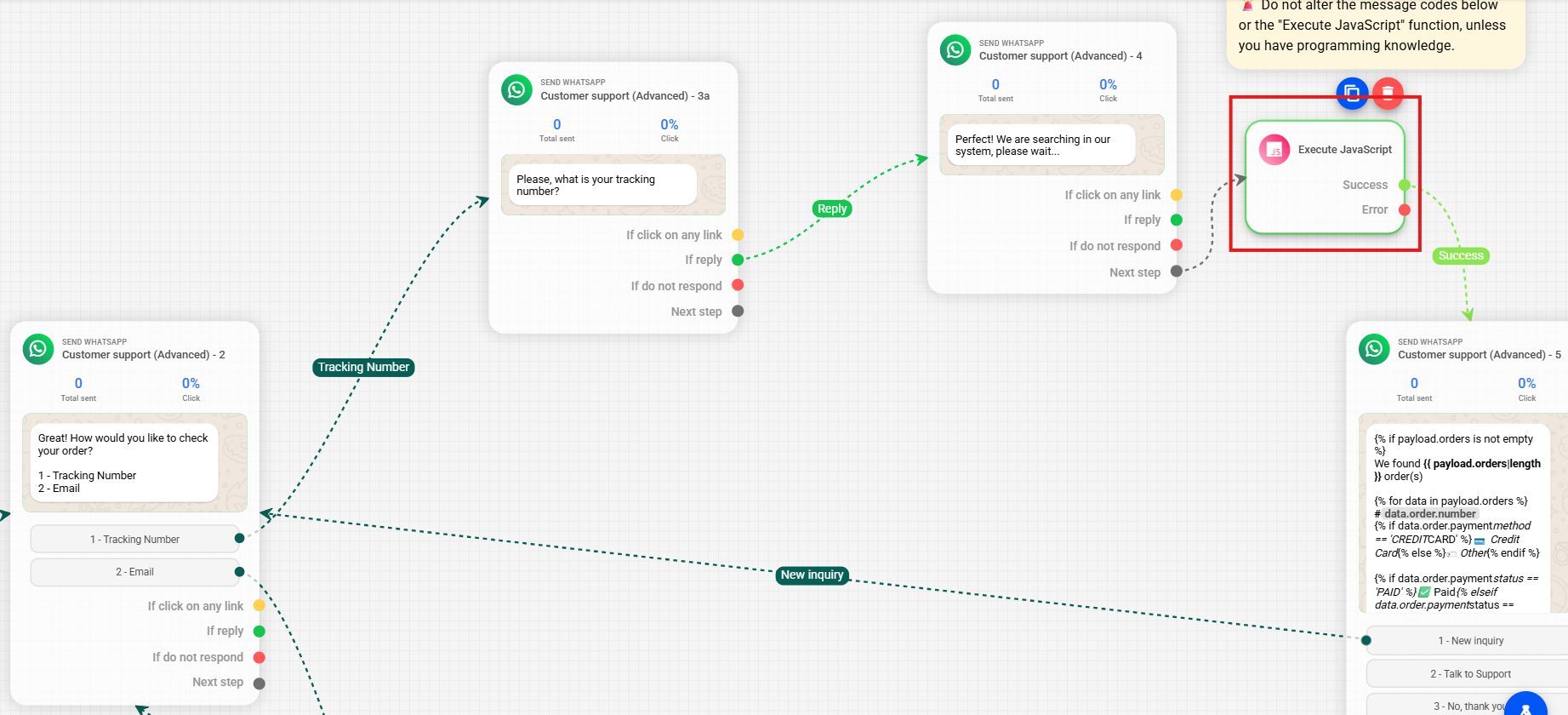

Next, once the customer provides the tracking number, within the automation structure, use the Execute JavaScript block to run the findOrdersByTrackingNumber function and search for the orders associated with the provided tracking number.

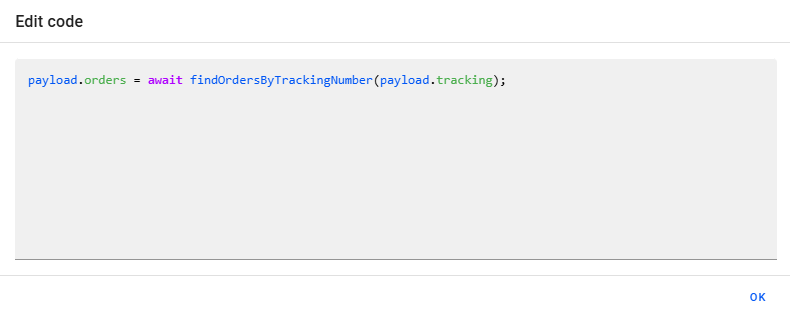

In the Execute JavaScript block, we use the code payload.orders = await findOrdersByTrackingNumber(payload.tracking) to search for orders associated with the tracking number provided by the customer. This way, the tracking number saved in the payload.tracking variable is used by the findOrdersByTrackingNumber function to retrieve the orders linked to that tracking number. The result is stored in payload.orders as an array containing the orders.

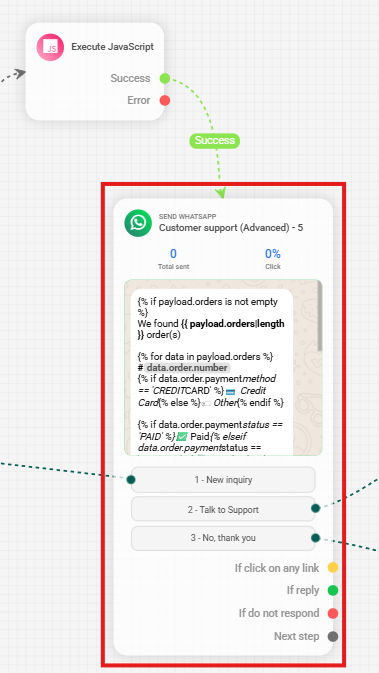

The response from the search may return, in the following messages, information about the orders found.

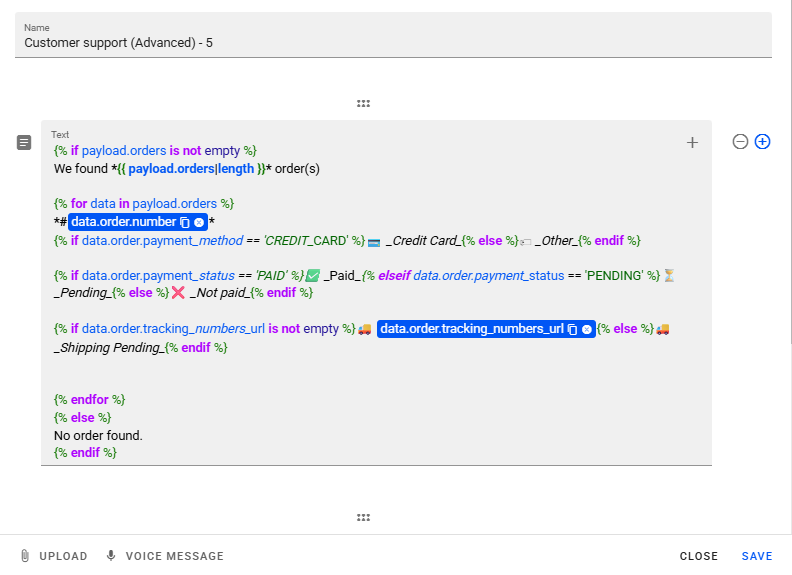

Example Code

{% if payload.orders is not empty %}
We found *{{ payload.orders|length }}* order(s). Here are the details:

{% for data in payload.orders %}
*#{{ data.order.number }}*
{% if data.order.payment_method == 'BOLETO' %}🏷 _Boleto_{% elseif data.order.payment_method == 'CREDIT_CARD' %}💳 _Credit Card_{% elseif data.order.payment_method == 'PIX' %}🤳🏼 _Pix_{% else %}🏷 _Other_{% endif %}

{% if data.order.payment_status == 'PAID' %}✅ _Paid_{% elseif data.order.payment_status == 'PENDING' %}⏳ _Pending_{% else %}❌ _Not Paid_{% endif %}

{% if data.order.tracking_numbers_url is not empty %}🚚 {{ data.order.tracking_numbers_url }}{% else %}🚚 _Pending Shipment_{% endif %}

{% endfor %}
{% else %}
No orders found.
{% endif %}

Note: In the example code, if no orders are found for the provided phone number, the message “No orders found” will be displayed. To structure the response message containing the order data in this example, we use the Reportana® Script template language, which supports for and if/else structures. These commands allow for detailed and conditional formatting of the displayed information. To deepen your understanding of Reportana® Script and explore additional examples, refer to the full documentation: Reportana® Script - Documentation.

Return of the `findOrdersByTrackingNumber` Function

{
  "orders": [
    {
      "reference_id": 1234,
      "reference_type": "ORDER",
      "customer_id": 1234,
      "name": "John Smith",
      "first_name": "John",
      "last_name": "Smith",
      "email": "john.smith@example.com",
      "phone": "+1 555-123-4567",
      "shop": {
        "id": 1234,
        "name": "Test Store",
        "currency_code": "USD",
        "billing_address_formatted": "123 Maple Street, Downtown, Springfield, IL, 62704, USA"
      },
      "customer": {
        "id": 104657184,
        "name": "John Smith",
        "email": "john.smith@example.com",
        "phone": "+1 555-123-4567",
        "birth_date": null,
        "metadata": []
      },
      "order": {
        "admin_url": "https://….png",
        "customer_name": "John Smith",
        "customer_email": "john.smith@example.com",
        "customer_phone": "+1 555-123-4567",
        "customer_document": "123-45-6789",
        "billing_address": {
          "name": "John Smith",
          "first_name": "John",
          "last_name": "Smith",
          "company": null,
          "phone": "+1 555-123-4567",
          "address1": "456 Oak Avenue, Apt 31",
          "address2": "Downtown",
          "city": "Springfield",
          "province": "Illinois",
          "province_code": "IL",
          "country": "United States",
          "country_code": "US",
          "zip": "62704",
          "latitude": null,
          "longitude": null
        },
        "shipping_address": {
          "name": "John Smith",
          "first_name": "John",
          "last_name": "Smith",
          "company": null,
          "phone": "+1 555-123-4567",
          "address1": "456 Oak Avenue, Apt 31",
          "address2": "Downtown",
          "city": "Springfield",
          "province": "Illinois",
          "province_code": "IL",
          "country": "United States",
          "country_code": "US",
          "zip": "62704",
          "latitude": null,
          "longitude": null
        },
        "number": "1234",
        "currency": "USD",
        "total_price": "99.90",
        "total_price_formatted": "$99.90",
        "subtotal_price": "0.00",
        "subtotal_price_formatted": "$0.00",
        "line_items": [
          {
            "title": "My Robot",
            "variant_title": "Blue",
            "quantity": 1,
            "price": 210.27,
            "path": "https://….png",
            "image_url": "https://….png",
            "tracking_number": null
          }
        ],
        "payment_status": "PAID",
        "payment_method": "BOLETO",
        "billet_url": "https://boleto.pl/1234abcd",
        "billet_line": "00000000000000000000000000000000000000000000000",
        "billet_expired_at": "2024-04-30 00:00:00",
        "billet_expired_at_formatted": "04/30/2024",
        "original_created_at": "2024-04-27 08:30:06",
        "billing_address_formatted": "456 Oak Avenue, Apt 31, Downtown, Springfield, IL, 62704",
        "shipping_address_formatted": "456 Oak Avenue, Apt 31, Downtown, Springfield, IL, 62704",
        "line_items_formatted": "My Robot",
        "line_items_formatted_with_variant": "My Robot - Blue",
        "tracking_numbers_formatted": "1234ABCD",
        "tracking_numbers_url": "https://boleto.pl/1234ABCD",
        "tracking_numbers": [
          {
            "code": "NL0000000000US",
            "new_code": "NL0000000123US",
            "full_status": "DELIVERED",
            "elapsed_time": 30,
            "tax_at": "2024-11-30 11:46:45",
            "delivered_at": "2024-12-14 11:46:45",
            "returning_to_sender_at": "2024-11-30 11:46:45",
            "returned_to_sender_at": "2024-11-30 11:46:45",
            "first_update_at": "2024-11-14 11:46:45",
            "last_update_at": "2024-12-14 11:46:45",
            "last_request_at": "2024-12-14 11:46:45",
            "events": [
              {
                "type": "COURIER",
                "date": "2024-12-14 11:46:45",
                "label": "Delivered",
                "location": "Springfield, IL",
                "description": "Your package has been delivered"
              },
              {
                "type": "COURIER",
                "date": "2024-11-14 11:46:45",
                "label": "Shipped",
                "location": "Springfield, IL",
                "description": "Accepted by the courier"
              }
            ]
          }
        ]
      }
    }
  ]
}

Response Data

The search returns various detailed information about the orders, including:

Customer Data: Name, phone number, email used to place the order, etc;
Order Information: Order ID, payment status (e.g., paid, pending), payment method (e.g., boleto, credit card), order creation date, etc;
Address Data: Billing and shipping address, including city, state, ZIP code, etc;
Order Items: Product name, variant (e.g., color), quantity, unit price, product image URL, etc;
Payment Information: Boleto URL, boleto digitable line, due date, Pix copy and paste code, total order value, etc;
Useful URLs: Tracking link and any other relevant URLs.

This data enables composing personalized messages to inform the customer about the details of the orders associated with the phone number used in the search.
